C-Wandriegel

Quick Find: Clear Filters

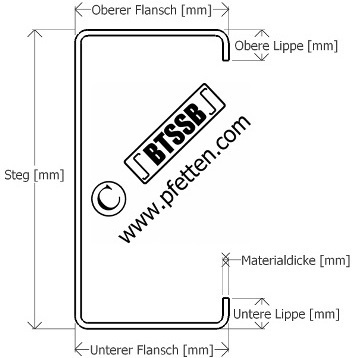

Bezeichnung Artikel-
Nr.		 Form Obere
Lippe
[mm]		 Oberer
Flansch
[mm]		 Steg
[mm]		 Unterer
Flansch
[mm]		 Untere
Lippe
[mm]		 Material-
dicke
[mm]		 Gewicht
[kg/m]		 Maß B
[mm]		 Maß C
[mm]		 Flächenwerte
C20-10-10 481 C 6 10 20 10 6 1.0 0.36
C20-20-10 482 C 6 20 20 20 6 1.0 0.52
C20-10-12 483 C 6 10 20 10 6 1.2 0.41
C20-20-12 484 C 6 20 20 20 6 1.2 0.6
C20-10-15 485 C 6 10 20 10 6 1.5 0.51
C20-20-15 486 C 6 20 20 20 6 1.5 0.74
C25-15-10 487 C 8 15 25 15 8 1.0 0.51
C25-25-10 488 C 8 25 25 25 8 1.0 0.67
C25-15-12 489 C 8 15 25 15 8 1.2 0.6
C25-25-12 490 C 8 25 25 25 8 1.2 0.79
C25-15-15 491 C 8 15 25 15 8 1.5 0.73
C25-25-15 492 C 8 25 25 25 8 1.5 0.97
C27-12.5-7.5x2.0 2115 C 7.5 12.5 27 12.5 7.5 2.0 0.86
C30-10-10 493 C 10 10 30 10 10 1.0 0.5
C30-15-10 494 C 8 15 30 15 8 1.0 0.55
C30-10-12 495 C 10 10 30 10 10 1.2 0.59
C30-15-12 496 C 8 15 30 15 8 1.2 0.65
C30-30-12 497 C 10 30 30 30 10 1.2 0.97
C30-40-12 498 C 10 40 30 40 10 1.2 1.16
C30-10-15 499 C 10 10 30 10 10 1.5 0.72
C30-15-15 500 C 8 15 30 15 8 1.5 0.79
C30-30-15 501 C 10 30 30 30 10 1.5 1.19
C30-40-15 502 C 10 40 30 40 10 1.5 1.42
C30-30-20 503 C 10 30 30 30 10 2.0 1.54
C80-30-15x3 2153 C 15 30 80 30 15 3.0 3.54
C80-35-15x3 2154 C 15 35 80 35 15 3.0 3.77
C30-40-20 504 C 10 40 30 40 10 2.0 1.85
C40-20-12 505 C 10 20 40 20 10 1.2 0.88
C40-30-12 506 C 10 30 40 30 10 1.2 1.06
C40-20-15 507 C 10 20 40 20 10 1.5 1.07
C40-30-15 508 C 10 30 40 30 10 1.5 1.31
C40-40-15 509 C 10 40 40 40 10 1.5 1.54
C40-20-20 510 C 10 20 40 20 10 2.0 1.38
C40-30-20 511 C 10 30 40 30 10 2.0 1.7
C40-40-20 512 C 10 40 40 40 10 2.0 2.01
C40-40-25 513 C 10 40 40 40 10 2.5 2.45
C45-30-15 514 C 13 30 45 30 13 1.5 1.48
C45-30-20 515 C 13 30 45 30 13 2.0 1.93
C45-30-25 516 C 13 30 45 30 13 2.5 2.36
C50-30-15 517 C 15 30 50 30 15 1.5 1.54
C50-40-15 518 C 15 40 50 40 15 1.5 1.78
C50-30-20 519 C 15 30 50 30 15 2.0 2.01
C50-40-20 520 C 15 40 50 40 15 2.0 2.32
C50-50-20 521 C 15 50 50 50 15 2.0 2.64
C50-30-25 522 C 15 30 50 30 15 2.5 2.45
C50-40-25 523 C 15 40 50 40 15 2.5 2.85
C50-50-25 524 C 15 50 50 50 15 2.5 3.24
C50-50-30 525 C 15 50 50 50 15 3.0 3.77
C60-30-20 526 C 20 30 60 30 20 2.0 2.32
C60-40-10x1,5 2317 C 10 40 60 40 10 1.5 1.77
C60-50-20 527 C 20 50 60 50 20 2.0 2.95
C60-30-25 528 C 20 30 60 30 20 2.5 2.85
C60-50-25 529 C 20 50 60 50 20 2.5 3.63
C60-30-30 530 C 20 30 60 30 20 3.0 3.3
C60-50-30 531 C 20 50 60 50 20 3.0 4.24
C80-50-20 532 C 20 50 80 50 20 2.0 3.27
C80-80-20 533 C 25 80 80 80 25 2.0 4.36
C80-50-25 534 C 20 50 80 50 20 2.5 4.02
C80-80-25 535 C 25 80 80 80 25 2.5 5.4
C80-50-30 536 C 20 50 80 50 20 3.0 4.71
C80-80-30 537 C 25 80 80 80 25 3.0 6.36
90C25d 1603 C 22 90 90 90 22 2.5 5.72 22.5 45
90C32d 1604 C 22 90 90 90 22 3.2 7.24 22.5 45
C100x1,0 757 C 12 50 100 50 12 1.0 1.67 25 50
C100x1,25 758 C 12 50 100 50 12 1.25 2.07 25 50
C100x1,5 759 C 12 50 100 50 12 1.5 2.46 25 50
C100x1,75 760 C 12 50 100 50 12 1.75 2.85 25 50
C100-50-20 538 C 25 50 100 50 25 2.0 3.74
C100-80-20 539 C 25 80 100 80 25 2.0 4.68
C100x2,0 761 C 12 50 100 50 12 2.0 3.24 25 50
C100-50-25 540 C 25 50 100 50 25 2.5 4.61
C100-80-25 541 C 25 80 100 80 25 2.5 5.79
C100x2,5 762 C 12 50 100 50 12 2.5 3.99 25 50
C100-50-30 542 C 25 50 100 50 25 3.0 5.42
C100-80-30 543 C 25 80 100 80 25 3.0 6.83
C100-60-15x3.0 2303 C 15 60 100 60 15 3.0 5.42
C105-15 854 C 23.5 80 105 80 23.5 1.5 3.60 30 45
C105-20 855 C 25.5 80 105 80 25.5 2.0 4.80 30 45
C105-80-20x2.0 2353 C 20 80 105 80 20 2.0 4.55
105C25 44 C 20 80 105 80 20 2.5 5.79 52.5 0 Flächenwerte
105C25d 1605 C 22 90 105 90 22 2.5 6.02 31.5 42
C105-25 856 C 27.5 80 105 80 27.5 2.5 6.00 30 45
105C29 725 C 20 80 105 80 20 2.9 6.42 52.5 0
C105-30 857 C 29.5 80 105 80 29.5 3.0 7.20 30 45
105C32 45 C 20 80 105 80 20 3.2 7.02 52.5 0 Flächenwerte
105C32d 1606 C 22 90 105 90 22 3.2 7.62 31.5 42
C120-15 858 C 23.5 90 120 90 23.5 1.5 4.02 35 50
C120-20 859 C 25.5 90 120 90 25.5 2.0 5.36 35 50
C120-40-15x25 2251 C 15 40 120 40 15 2.5 4.15
C120-40-15x30 2252 C 15 40 120 40 15 3.0 4.92
C120-60-20 544 C 30 60 120 60 30 2.0 4.52
C120-80-20 545 C 30 80 120 80 30 2.0 5.15
C120-80-25x25 1919 C 25 80 120 80 25 2.5 6.11
C120-80-25x30 1920 C 25 80 120 80 25 3.0 7.28
C120-25 860 C 27.5 90 120 90 27.5 2.5 6.70 35 50
C120-60-25 546 C 30 60 120 60 30 2.5 5.59
C120-80-25 547 C 30 80 120 80 30 2.5 6.38
C120-30 861 C 29.5 90 120 90 29.5 3.0 8.04 35 50
C120-60-30 548 C 30 60 120 60 30 3.0 6.59
C120-80-30 549 C 30 80 120 80 30 3.0 7.54
C120-60-15x3.0 2302 C 15 60 120 60 15 3.0 5.89
C120/80/20x4.0 2306 C 20 80 120 80 20 4.0 9.22
121C15 651 C 9.5 60 121 60 9.5 1.5 2.89 32.5 56
121C16 652 C 9.5 60 121 60 9.5 1.6 3.08 32.5 56
121C18 653 C 9.5 60 121 60 9.5 1.8 3.47 32.5 56
121C20 654 C 9.5 60 121 60 9.5 2.0 3.85 32.5 56
C-140x15 838 C 22 60 140 60 22 1.5 3.47 20 100
C140-75-20-32 2046 C 20 75 140 75 20 3.2 7.76 40 60
140C20d 1607 C 22 90 140 90 22 2.0 5.42 49 42
C140-20 862 C 23 90 140 90 23 2.0 5.60 40 60
C140-60-20 550 C 30 60 140 60 30 2.0 4.84
C140-80-20 551 C 30 80 140 80 30 2.0 5.46
C140-80-15x2.0 2122 C 15 80 140 80 15 2.0 4.93
C140-80-15x2.5 2123 C 15 80 140 80 15 2.5 6.12
C140-80-15x3.0 2201 C 15 80 140 80 15 3.0 7.31
C140-90-20x2.0 2205 C 20 90 140 90 20 2.0 5.40
C140-85-30x2.0 2326 C 30 85 140 85 30 2.0 5.57
C140-85-30x2.5 2325 C 30 85 140 85 30 2.5 6.92
C-140x20 839 C 22 60 140 60 22 2.0 4.63 20 100
140C25 46 C 20 90 140 90 20 2.5 6.67 40 60 Flächenwerte
140C25d 1608 C 22 90 140 90 22 2.5 6.71 49 42
C140-25 863 C 25 90 140 90 25 2.5 7.00 40 60
C140-1.5 2261 C 15 90 140 90 15 1.5 3.28 35 70
C140-2.0 2262 C 15 90 140 90 15 2.0 4.33 35 70
C140-60-25 552 C 30 60 140 60 30 2.5 5.99
C140-80-25 553 C 30 80 140 80 30 2.5 6.77
140C29 227 C 20 90 140 90 20 2.9 7.67 40 60
C140-90-30 1709 C 20 90 140 90 20 3.0 7.93 40 60
C140-90-30x3.0 1874 C 30 90 140 90 30 3.0 8.66 40 60
140C30d 1609 C 22 90 140 90 22 3.0 8.00 49 42
C140-30 864 C 27 90 140 90 27 3.0 8.40 40 60
C140-60-30 554 C 30 60 140 60 30 3.0 7.07
C140-80-30 555 C 30 80 140 80 30 3.0 8.01
C140-60-15x3.0 2304 C 15 60 140 60 30 3.0 6.36
140C32 47 C 20 90 140 90 20 3.2 8.40 40 60 Flächenwerte
140C32d 1610 C 22 90 140 90 22 3.2 8.50 49 42
C140*3,5 1569 C 20 90 140 90 20 3.5 9.19 40 60
C140-35 2340 C 29 90 140 90 29 3.5 9.75 40 60
C140-90-35x3.5 2206 C 35 90 140 90 35 3.5 10.10
C140-40 865 C 31 90 140 90 31 4.0 11.20 40 60
C140/80/20x4.0 2301 C 20 80 140 80 20 4.0 9.85
141C15 655 C 9.5 60 141 60 9.5 1.5 3.1 42.5 56
141C16 399 C 9.5 60 141 60 9.5 1.6 3.31 42.5 56
141C18 400 C 9.5 60 141 60 9.5 1.8 3.72 42.5 56
141C20 401 C 9.5 60 141 60 9.5 2.0 4.14 42.5 56
141C25 2121 C 9.5 60 141 60 9.5 2.5 5.18 42.5 56
142C13 1578 C 13 64 142 64 13 1.3 2.94 43 56
142C14 1579 C 13 64 142 64 13 1.4 3.16 43 56
142C15 1580 C 13 64 142 64 13 1.5 3.38 43 56
142C16 48 C 13 64 142 64 13 1.6 3.6 43 56 Flächenwerte
142C18 49 C 13 64 142 64 13 1.8 4.03 43 56 Flächenwerte
142C20 50 C 13 64 142 64 13 2.0 4.46 43 56 Flächenwerte
142C90-25 1902 C 13 90 142 90 13 2.5 6.50 43 56
C150x1,0 C 12 50 150 50 12 1.0 45 60
C150x1,25 763 C 12 50 150 50 12 1.25 2.56 45 60
150C15 2398 C 25 90 150 90 25 1.5 4.33 45 60
C150x1,5 764 C 12 50 150 50 12 1.5 3.05 45 60
C150x1,75 765 C 12 50 150 50 12 1.75 3.54 45 60
150C20 2295 C 25 90 150 90 25 2.0 5.73 45 60
C150-20 866 C 30.5 90 150 90 30.5 2.0 6.00 40 70
C150-50-20 556 C 30 50 150 50 30 2.0 4.68
C150-80-20 557 C 30 80 150 80 30 2.0 5.62
C150-90-30x2 2222 C 30 90 150 90 30 2.0 5.89 45 60
C150x2,0 766 C 12 50 150 50 12 2.0 4.02 45 60
C150-25 867 C 32.5 90 150 90 32.5 2.5 7.50 40 70
C150-50-25 558 C 30 50 150 50 30 2.5 5.79
C150-80-25 559 C 30 80 150 80 30 2.5 6.97
C150x2,5 767 C 12 50 150 50 12 2.5 4.97 45 60
150C30 726 C 25 90 150 90 25 3.0 8.38 45 60
C150-30 868 C 34.5 90 150 90 34.5 3.0 9.00 40 70
C150-50-30 560 C 30 50 150 50 30 3.0 6.83
C150-80-30 561 C 30 80 150 80 30 3.0 8.24
C150-90-30x3 2223 C 30 90 150 90 30 3.0 8.72 45 60
C150-100-25x3 2257 C 25 100 150 100 25 3.0 8.95
150C32 51 C 25 90 150 90 25 3.2 8.90 45 60 Flächenwerte
150C25 2134 C 25 90 150 90 25 2.5 7.11 45 60
C150-35 2341 C 36.5 90 150 90 36.5 3.5 10.44 40 70
C150-40 869 C 38.5 90 150 90 38.5 4.0 12.00 40 70
C150-90-45x3 2474 C 45 90 150 90 45 3.0 9.42 45 60
C150-90-45x4 2475 C 45 90 150 90 45 4.0 12.36 45 60
150C64 2537 C 25 90 150 90 25 6.4 17.67
151C15 656 C 14.5 60 151 60 14.5 1.5 3.26 42.5 66
151C16 657 C 14.5 60 151 60 14.5 1.6 3.47 42.5 66
151C18 658 C 14.5 60 151 60 14.5 1.8 3.91 42.5 66
151C20 659 C 14.5 60 151 60 14.5 2.0 4.34 42.5 66
157C25 2316 C 21.5 69 157 69 21.5 2.5 6.32
160C20d 1611 C 22 90 160 90 22 2.0 5.73 49.5 61
C160-20 870 C 25.5 90 160 90 25.5 2.0 6.00 40 80
C160-50-20 562 C 30 50 160 50 30 2.0 4.84
160C25d 1612 C 22 90 160 90 22 2.5 7.10 49.5 61
C160-25 871 C 27.5 90 160 90 27.5 2.5 7.50 40 80
C160-50-25 563 C 30 50 160 50 30 2.5 5.99
C160-60-25 564 C 30 60 160 60 30 2.5 6.38
C160-80-25 565 C 30 80 160 80 30 2.5 7.16
C160-60-20-25 2400 C 20 60 160 60 20 2.5 5.94 30 100
C160-60-15x2.5 2307 C 15 60 160 60 15 2.5 5.74
C160/90/28x2.5 2329 C 28 90 160 90 28 2.5 7.43
C160/90/40x2.5 2227 C 40 90 160 90 40 2.5 7.90
160C30d 1613 C 22 90 160 90 22 3.0 8.52 49.5 61
C160-30 872 C 29.5 90 160 90 29.5 3.0 9.00 40 80
C160-50-30 566 C 30 50 160 50 30 3.0 7.07
C160-60-30 567 C 30 60 160 60 30 3.0 7.54
C160-80-30 568 C 30 80 160 80 30 3.0 8.48
C160-90-35x3.0 2207 C 35 90 160 90 35 3.0 9.19
160C32d 1614 C 22 90 160 90 22 3.2 9.00 49.5 61
C160-60-35 569 C 30 60 160 60 30 3.5 8.68
C160-80-35 570 C 30 80 160 80 30 3.5 9.78
C160-90-31x3.5 2328 C 31 90 160 90 31 3.5 10.41
C160-35 2342 C 31.5 90 160 90 31.5 3.5 10.44 40 80
C160-40 873 C 33.5 90 160 90 33.5 4.0 12.00 40 80
C170E20 35 C 23 100 170 100 23 2.0 6.41 42 86
C170E23 36 C 23 100 170 100 23 2.3 7.35 42 86
C170E32 37 C 23 100 170 100 23 3.2 10.13 42 86
C170-80-25-25 2354 C 25 80 170 80 25 2.5 7.12
C170-80-25-30 1889 C 25 80 170 80 25 3.0 8.40 20 130
C170-80-25-35 1888 C 25 80 170 80 25 3.5 9.80 20 130
C170-30 1864 C 43 80 170 80 43 3.0 9.51 20 130
C170-20 1865 C 43 80 170 80 43 2.0 6.41 20 130
171C15 660 C 10.5 70 171 70 10.5 1.5 3.73 42.5 86
171C16 661 C 10.5 70 171 70 10.5 1.6 3.97 42.5 86
171C18 662 C 10.5 70 171 70 10.5 1.8 4.47 42.5 86
171-90C20 1848 C 16 90 171 90 16 2.0 5.89 42,5 86
171C20 663 C 10.5 70 171 70 10.5 2.0 4.97 42.5 86
171-90C25 1851 C 16 90 171 90 16 2.5 7.32 42.5 86
171C25 664 C 10.5 70 171 70 10.5 2.5 6.21 42.5 86
171-90C30 1852 C 16 90 171 90 16* 3.0 8,74 42.5 86
172C13 1581 C 14 69 172 69 14 1.3 3.35 43 86
172C14 1582 C 14 69 172 69 14 1.4 3.60 43 86
172C15 52 C 14 69 172 69 14 1.5 3.84 43 86 Flächenwerte
172C16 53 C 14 69 172 69 14 1.6 4.08 43 86 Flächenwerte
172C18 54 C 14 69 172 69 14 1.8 4.57 43 86 Flächenwerte
172C20 66 C 14 69 172 69 14 2.0 5.06 43 86 Flächenwerte
172C23 67 C 14 69 172 69 14 2.3 5.77 43 86 Flächenwerte
172C25 55 C 14 69 172 69 14 2.5 6.24 43 86 Flächenwerte
172C30 2184 C 14 69 172 69 14 3.0 7.49 43 86
172-90C25 1860 C 22 90 172 90 22 2.5 7.44 43 86
C-180x15 840 C 22 60 180 60 22 1.5 3.94 20 140
C180-20 874 C 28 90 180 90 28 2.0 6.40 50 80
C-180x20 841 C 22 60 180 60 22 2.0 5.26 20 140
180C25d 1615 C 22 90 180 90 22 2.5 7.52 50 80
C180-25 875 C 30 90 180 90 30 2.5 8.00 50 80
C180-50-25 571 C 30 50 180 50 30 2.5 6.38
C180-60-25 572 C 30 60 180 60 30 2.5 6.77
C180-80-25 573 C 30 80 180 80 30 2.5 7.56
C180-30 876 C 32 90 180 90 32 3.0 9.60 50 80
C180-90-20x3 2199 C 20 90 180 90 20 3.0 8.93
C180-1.5 2263 C 15 60 180 60 15 1.5 3.75 45 90
C180-2.0 2264 C 15 60 180 60 15 2.0 4.96 45 90
C180-50-30 574 C 30 50 180 50 30 3.0 7.54
C180-60-30 575 C 30 60 180 60 30 3.0 8.01
C180-80-30 576 C 30 80 180 80 30 3.0 8.95
C25/80/180/80/25*2,5 1875 C 25 80 180 80 25 2.5 7.45
180C32d 1616 C 22 90 180 90 22 3.2 9.52 50 80
C180-50-35 577 C 30 50 180 50 30 3.5 8.68
C180-60-35 578 C 30 60 180 60 30 3.5 9.23
C180-80-35 579 C 30 80 180 80 30 3.5 10.33
C180-35 2343 C 34 90 180 90 34 3.5 11.12 50 80
C180-40 877 C 36 90 180 90 36 4.0 12.80 50 80
C200x1,5 768 C 25 80 200 80 25 1.5 4.66 50 100
C200-65-22x3 2126 C 22 90 200 90 22 3.0 8.32
C200-20 878 C 25.5 100 200 100 25.5 2.0 6.96 60 80
C200x2,0 769 C 25 80 200 80 25 2.0 6.16 50 100
200C25d 1617 C 22 90 200 90 22 2.5 7.87 60 80
C200-25 879 C 27.5 100 200 100 27.5 2.5 8.70 60 80
C200-60-25 407 C 30 60 200 60 30 2.5 7.16
C200-80-25 408 C 30 80 200 80 30 2.5 7.95
C200x2,5 770 C 25 80 200 80 25 2.5 7.64 50 100
MC200*3 2297 C 25 77 200 77 25 3.0 9.05
C200-30 880 C 29.5 100 200 100 29.5 3.0 10.44 60 80
C200-60-30 409 C 30 60 200 60 30 3.0 8.48
C200-80-30 410 C 30 80 200 80 30 3.0 9.42
C200/60/20x3.0 2305 C 20 60 200 60 20 3.0 8.01
200C32d 1618 C 22 90 200 90 22 3.2 10.10 60 80
C200-60-35 411 C 30 60 200 60 30 3.5 9.78
C200-80-35 412 C 30 80 200 80 30 3.5 10.88
C200-35 2344 C 31.5 100 200 100 31.5 3.5 12.09 60 80
C200-40 881 C 33.5 100 200 100 33.5 4.0 13.92 60 80
C200/80/20x4.0 2300 C 20 80 200 80 20 4.0 11.73
201C14 2129 C 10.5 70 201 70 10.5 1.4 3.88 42.5 116
201C15 665 C 10.5 70 201 70 10.5 1.5 4.07 42.5 116
201C16 666 C 10.5 70 201 70 10.5 1.6 4.34 42.5 116
201C18 667 C 10.5 70 201 70 10.5 1.8 4.88 42.5 116
201-90C20 1849 C 16 90 201 90 16 2.0 6.36 42.5 116
201C20 668 C 10.5 70 201 70 10.5 2.0 5.42 42.5 116
201C23 669 C 10.5 70 201 70 10.5 2.3 6.24 42.5 116
201-90C25 1853 C 16 90 201 90 16 2.5 7.91 42.5 116
201C25 670 C 10.5 70 201 70 10.5 2.5 6.78 42.5 116
201C29 2107 C 10.5 70 201 70 10.5 2.9 7.86 42.5 116
201-90C30 1854 C 16 90 201 90 16 3.0 9.44 42.5 116
202C14 1583 C 14 69 202 69 14 1.4 3.93 43 116
202C15 1584 C 14 69 202 69 14 1.5 4.21 43 116
202C16 56 C 14 69 202 69 14 1.6 4.46 43 116 Flächenwerte
202C18 57 C 14 69 202 69 14 1.8 5.00 43 116 Flächenwerte
202C20 58 C 14 69 202 69 14 2.0 5.53 43 116 Flächenwerte
202C23 59 C 14 69 202 69 14 2.3 6.31 43 116 Flächenwerte
202C25 60 C 14 69 202 69 14 2.5 6.83 43 116 Flächenwerte
202C27 2216 C 13 65 202 65 13 2.7 7.20 43 116
202C30 727 C 14 69 202 69 14 3.0 8.10 43 116
202C32 61 C 14 69 202 69 14 3.2 8.74 43 116 Flächenwerte
C-210x15 842 C 22 60 210 60 22 1.5 4.30 20 170
C-210x20 843 C 22 60 210 60 22 2.0 5.73 20 170
C-210x25 844 C 22 60 210 60 22 2.5 7.16 20 170
C210-1.5 2265 C 15 60 210 60 15 1.5 4.10 45 90
C210-2.0 2266 C 15 60 210 60 15 2.0 5.43 60 90
C210-2.5 2267 C 15 60 210 60 15 2.5 6.74 60 90
C220-60-25 580 C 30 60 220 60 30 2.5 7.56
C220-80-25 581 C 30 80 220 80 30 2.5 8.34
C220-60-30 582 C 30 60 220 60 30 3.0 8.95
C220-80-30 583 C 30 80 220 80 30 3.0 9.89
C220-60-35 584 C 30 60 220 60 30 3.5 10.33
C220-80-35 585 C 30 80 220 80 30 3.5 11.43
C230E20 38 C 23 100 230 100 23 2.0 7.35 42 146
C230E25 39 C 23 100 230 100 23 2.5 9.03 42 146
231C16 671 C 12.5 78 231 78 12.5 1.6 4.96 42.5 146
231C18 672 C 12.5 78 231 78 12.5 1.8 5.58 42.5 146
231-90C20 1850 C 16 90 231 90 16 2.0 6.83 425 146
231C20 673 C 12.5 78 231 78 12.5 2.0 6.21 42.5 146
231C23 674 C 12.5 78 231 78 12.5 2.3 7.14 42.5 146
231-90C25 1855 C 16 90 231 90 16 2.5 8.49 42.5 146
231C25 675 C 12.5 78 231 78 12.5 2.5 7.76 42.5 146
231-90C30 1856 C 16 90 231 90 16 3.0 10.15 42.5 146
232C15 1585 C 16 76 232 76 16 1.5 4.79 43 146
232C16 1586 C 16 76 232 76 16 1.6 5.11 43 146
232C18 62 C 16 76 232 76 16 1.8 5.67 43 146 Flächenwerte
232C20 63 C 16 76 232 76 16 2.0 6.28 43 146 Flächenwerte
232C23 64 C 16 76 232 76 16 2.3 7.18 43 146 Flächenwerte
232C25 65 C 16 76 232 76 16 2.5 7.77 43 146 Flächenwerte
232C25N 2218 C 13 65 232 65 13 2.5 7.27 43 146
232C30 2190 C 16 76 232 76 16 3.0 9.33 43 146
C-240x20 845 C 22 60 240 60 22 2.0 6.20 20 200
C-240x25 846 C 22 60 240 60 22 2.5 7.75 20 200
C240-100-30 586 C 30 100 240 100 30 3.0 11.3
C240-120-30 587 C 30 120 240 120 30 3.0 12.25
C240-80-30 588 C 30 80 240 80 30 3.0 10.36
C-240x30 847 C 22 60 240 60 22 3.0 9.30 20 200
C240-100-35 589 C 30 100 240 100 30 3.5 13.08
C240-120-35 590 C 30 120 240 120 30 3.5 14.18
C240-80-35 591 C 30 80 240 80 30 3.5 11.98
C240-100-40 592 C 30 100 240 100 30 4.0 14.82
C240-120-40 593 C 30 120 240 120 30 4.0 16.08
C240-80-40 594 C 30 80 240 80 30 4.0 13.56
C240-86-20x2 2224 C 20 86 240 86 20 2.0 6.86
C240-86-20x3 2225 C 20 86 240 86 20 3.0 10.18
C250-25 2347 C 25 110 250 110 25 2.5 9.86
C250-30 2349 C 27 110 250 110 27 3.0 11.87 60 130
C250-80-40-30 2399 C 40 80 250 80 40 3.0 11.07 35 180
C250-75-25x3.5 2192 C 25 75 250 75 25 3.5 11.73
C250-100-30x3.5 2193 C 30 100 250 100 30 3.5 13.38
C250-35 2345 C 29 110 250 110 29 3.5 13.87 60 130
C250-40 2351 C 31 110 250 110 31 4.0 15.88 60 130
C260-100-30 595 C 30 100 260 100 30 3.0 11.78
C260-120-30 596 C 30 120 260 120 30 3.0 12.72
C260-80-20 2281 C 30 80 260 80 30 2.0 7.30
C260-80-30 597 C 30 80 260 80 30 3.0 10.83
C260-100-35 598 C 30 100 260 100 30 3.5 13.63
C260-120-35 599 C 30 120 260 120 30 3.5 14.73
C260-80-35 600 C 30 80 260 80 30 3.5 12.53
C260-100-40 601 C 30 100 260 100 30 4.0 15.45
C260-120-40 602 C 30 120 260 120 30 4.0 16.7
C260-80-40 603 C 30 80 260 80 30 4.0 14.19
261C18 676 C 12 82 261 82 12 1.8 6.08 42.5 176
261C20 677 C 12 82 261 82 12 2.0 6.75 42.5 176
261C23 678 C 12 82 261 82 12 2.3 7.77 42.5 176
261C25 679 C 12 82 261 82 12 2.5 8.44 42.5 176
261C29 680 C 12 82 261 82 12 2.9 9.79 42.5 176
262C16 1587 C 16 80 262 80 16 1.6 5.57 43 176
262C18 1588 C 16 80 262 80 16 1.8 6.25 43 176
262C20 327 C 16 80 262 80 16 2.0 6.92 43 176
262C23 330 C 16 80 262 80 16 2.3 7.92 43 176
262C25 1589 C 16 80 262 80 16 2.5 8.59 43 176
262M25 2170 C 13 65 262 65 13 2.5 7.86 51 160
262M30 2189 C 13 65 262 65 13 3.0 9.38 51 160
262C29 331 C 16 80 262 80 16 2.9 9.90 43 176
262C29N 2217 C 13 65 262 65 13 2.9 9.08 43 176
C-270x20 858 C 22 60 270 60 22 2.0 6.67 20 230
C-270x25 859 C 22 60 270 60 22 2.5 8.34 20 230
C-270x30 850 C 22 60 270 60 22 3.0 10.01 20 230
C270E25 40 C 23 100 270 100 23 2.5 9.93 47 176
C270E29 41 C 23 100 270 100 23 2.9 11.34 47 176
C280-100-30 604 C 30 100 280 100 30 3.0 12.25
C280-120-30 605 C 30 120 280 120 30 3.0 13.19
C280-80-30 606 C 30 80 280 80 30 3.0 11.3
C280-100-35 607 C 30 100 280 100 30 3.5 14.18
C280-120-35 608 C 30 120 280 120 30 3.5 15.28
C280-80-35 609 C 30 80 280 80 30 3.5 13.08
C280-100-40 610 C 30 100 280 100 30 4.0 16.08
C280-120-40 611 C 30 120 280 120 30 4.0 17.33
C280-80-40 612 C 30 80 280 80 30 4.0 14.82
C-300x20 851 C 22 60 300 60 22 2.0 7.14 20 260
C-300x25 852 C 22 60 300 60 22 2.5 8.93 20 260
C300-25 2348 C 30 120 300 120 30 2.5 11.43 75 150
C300-30 2350 C 32 120 300 120 32 3.0 13.76 75 150
C300-100-30 613 C 30 100 300 100 30 3.0 12.72
C300-100-25-30 1882 C 25 100 300 100 25 3.0 12.48 50 200
C300-80-30 614 C 30 80 300 80 30 3.0 11.78
C-300x30 853 C 22 60 300 60 22 3.0 10.72 20 260
C300-100-35 615 C 30 100 300 100 30 3.5 14.73
C300-80-35 616 C 30 80 300 80 30 3.5 13.63
C300-35 2346 C 34 120 300 120 34 3.5 16.07 75 150
C300-40 2352 C 36 120 300 120 36 4.0 18.39 75 150
C300-100-40 617 C 30 100 300 100 30 4.0 16.7
C300-120-40 618 C 30 120 300 120 30 4.0 17.96
C300-80-40 619 C 30 80 300 80 30 4.0 15.45
C300-120-50 620 C 30 120 300 120 30 5.0 22.14
C300-120-70 621 C 30 120 300 120 30 7.0 30.11
C40/160/300/160/40*3,0 1881 C 40 160 300 160 40 3.0 16.20
302C20 1590 C 18 89 302 89 18 2.0 7.89 53.5 195
302C23 1591 C 18 89 302 89 18 2.3 9.04 53.5 195
302C25 1592 C 18 89 302 89 18 2.5 9.80 53.5 195
302C29 1593 C 18 89 302 89 18 2.9 11.31 53.5 195
C330E29 42 C 23 100 330 100 23 2.9 12.80 47 235
C330E32 1861 C 23 100 330 100 23 3.2 14.10 47 235
342C23 1594 C 20 97 342 97 20 2.3 10.13 53.5 235
342C25 1595 C 20 97 342 97 20 2.5 10.98 53.5 235
342C29 1596 C 20 97 342 97 20 2.9 12.68 53.5 235
342C32 1597 C 20 97 342 97 20 3.2 13.94 53.5 235
C30/35/325/35/30*3,0 2441 C 30 35 325 35 30 3.0 10.25
C30/35/475/35/30*3,0 2442 C 30 35 475 35 30 3.0 13.78
