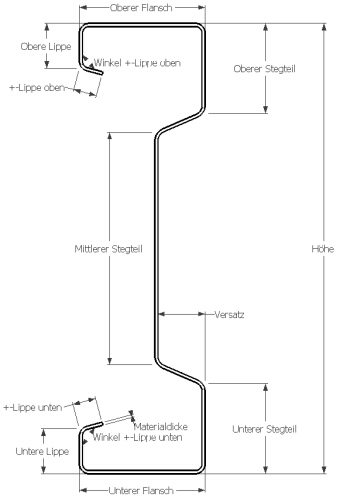

Artikel- Nr. Bezeichnung +- Lippe oben [mm] Obere Lippe [mm] Oberer Flansch [mm] Oberer Stegteil [mm] Mittlerer Stegteil [mm] Unterer Stegteil [mm] Unterer Flansch [mm] Untere Lippe [mm] +- Lippe unten [mm] Versatz [mm] Höhe [mm] Material- dicke [mm] Maß B [mm] Maß C [mm] Maß D [mm] Maß E [mm] 2723 splus220x1_25c 13 20 65 36 126.3 36 65 20 13 26.5 220 1.25 2724 splus220x1_5c 13 20 65 36 127 36 65 20 13 26.5 220 1.5 2725 splus220x1_75c 13 20 65 36 127.8 36 65 20 13 26.5 220 1.75 2726 splus220x2_0c 13 20 65 36 128.5 36 65 20 13 26.5 220 2.0 738 S+250*1,5c 13 25 70 50 129 50 70 25 13 26.5 250 1.5 27 196 739 S+250*1,75c 13 25 70 50 129.76 50 70 25 13 26.5 250 1.75 27 196 740 S+250*2,0c 13 25 70 50 130.5 50 70 25 13 26.5 250 2.0 27 196 741 S+250*2,5c 14.5 20 70 50 120 50 70 20 14.5 26.5 250 2.5 27 196 2710 S+250*3,0c 12.8 25 70 50 133.4 50 70 25 12.8 26.5 250 3.0 2711 S+250*4,0c 12.4 25 70 50 136.3 50 70 25 12.4 26.5 250 4.0 2738 splus260x2_0 13 25 70 50 140.5 50 70 25 13 26.5 260 2.0 27 206 5304 splus260x3_0 13 25 70 50 140.5 50 70 25 13 26.5 260 3.0 27 206 5306 splus5304 25 25 70 50 142 50 70 25 25 30.7 260 3.0 27 206 2712 S+300*1,5c 13 25 80 50 179 50 80 25 13 26.5 300 1.5 742 S+300*1,75c 13 25 80 50 179.8 50 80 25 13 26.5 300 1.75 27 246 743 S+300*2,0c 13 25 80 50 180.5 50 80 25 13 26.5 300 2.0 27 246 744 S+300*2,5c 13 25 80 50 182 50 80 25 13 26.5 300 2.5 27 246 745 S+300*3,0c 13 25 80 50 183.4 50 80 25 13 26.5 300 3.0 27 246 2713 S+300*3,5c 13 25 80 50 186.3 50 80 25 13 26.5 300 3.5 27 246 746 S+300*4,0c 13 25 80 50 186.3 50 80 25 13 26.5 300 4.0 27 246 2714 S+300*5,0c 15 30 80 50 189.2 50 80 30 15 26.5 300 5.0 27 246 715 S+320*2,0b 12 28 88 48 182 48 88 28 12 25 320 2.0 29 262 50 50 716 S+320*2,4b 12 28 88 48 182 48 88 28 12 25 320 2.4 29 262 50 50 717 S+320*2,7b 12 28 88 48 182 48 88 28 12 25 320 2.7 29 262 50 50 718 S+320*3,2b 12 28 88 48 182 48 88 28 12 25 320 3.2 29 262 50 50 719 S+320*4,0b 12 28 88 48 182 48 88 28 12 25 320 4.0 29 262 50 50 747 S+350*1,75c 13.75 30 90 50 229.76 50 90 30 13.75 26.5 350 1.75 27 296 720 S+350*2,0b 12 28 88 48 212 48 88 28 12 25 350 2.0 29 292 50 50 748 S+350*2,0c 13.5 30 90 50 230.5 50 90 30 13.5 26.5 350 2.0 27 296 721 S+350*2,4b 12 28 88 48 212 48 88 28 12 25 350 2.4 29 292 50 50 749 S+350*2,5c 13.5 30 90 50 232 50 90 30 13.5 26.5 350 2.5 27 296 722 S+350*2,7b 12 28 88 48 212 48 88 28 12 25 350 2.7 29 292 50 50 750 S+350*3,0c 13.5 30 90 50 233.4 50 90 30 13.5 26.5 350 3.0 27 296 3387 S+350*3_2 25 30 90 50 235 50 90 30 25 26.8 350 3.2 3395 splus350x3_2d 25 30 85 50 235 50 85 30 25 26.8 350 3.2 723 S+350*3,2b 12 28 88 48 212 48 88 28 12 25 350 3.2 29 292 50 50 3355 S+350*3,2c 27 31.5 88 48 212 48 88 31.8 27 25 350 3.2 724 S+350*4,0b 12 28 88 48 212 48 88 28 12 25 350 4.0 29 292 50 50 2715 S+350*3,5c 13.5 30 90 50 234.9 50 90 30 13.5 26.5 350 3.5 27 296 751 S+350*4,0c 13.5 30 90 50 236.3 50 90 30 13.5 26.5 350 4.0 27 296 2716 S+350*5,0c 17 30 90 50 239.2 50 90 30 17 26.5 350 5.0 27 296 2727 splus400x2_0c 14 35 100 60 260.5 60 100 35 14 26.5 400 2.0 5429 splus5429 14 50 120 60 261.8 60 120 50 14 25 400 2.0 2728 splus400x2_5c 14.5 35 100 60 262 60 100 35 14.5 26.5 400 2.5 2729 splus400x3_0c 15 35 100 60 263.4 60 100 35 15 26.5 400 3.0 2730 splus400x3_5c 15 35 100 60 264.9 60 100 35 15 26.5 400 3.5 2731 splus400x4_0c 15 35 100 60 266.3 60 100 35 15 26.5 400 4.0 752 S+420*2,0c 14 30 100 80 220 80 100 30 14 48 420 2.0 50 320 753 S+420*2,5c 14.5 30 100 80 220 80 100 30 14.5 48 420 2.5 50 320 754 S+420*3,0c 15 30 100 80 220 80 100 30 15 48 420 3.0 50 320 755 S+420*4,0c 16 30 100 80 220 80 100 30 16 48 420 4.0 50 320 756 S+420*5,0c 17 30 100 80 220 80 100 30 17 48 420 5.0 50 320 2717 S+450*2,0c 0 0 0 0 450 2.0 2718 S+450*2,5c 14.5 35 110 70 292 70 110 35 14.5 26.5 450 2.5 2719 S+450*3,0c 15 35 110 70 293.4 70 110 35 15 26.5 450 3.0 2720 S+450*4,0c 16 35 110 70 296.3 70 110 35 16 26.5 450 4.0 2721 S+450*5,0c 17 35 110 70 299.2 70 110 35 17 26.5 450 5.0

Kein passendes Profil gefunden? Fragen Sie bitte an! Kontakt l Anfragegenerator
