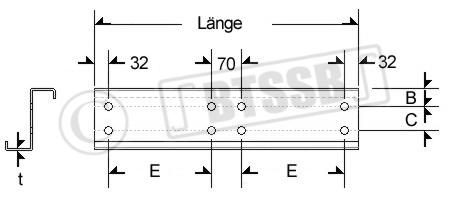

Z-Verstärkte-Endfeld-Stosslasche





Quick Find: Clear Filters


Bezeichnung Artikel - Nr. Passend zu
Profil:
Artikel - Nr.:		 Maß B
[mm]		 Maß C
[mm]		 Endfeld -
Maß E
[mm]		 Gesamt-
länge
[mm]		 Material-
dicke
[mm]		 Stückgewicht
[kg]
HEBS12216 75 265 32 56 240 614 1.60 1.97
HEBS14115 2420 625 42 56 308 750 1.50 2.33
HEBS14116 2421 395 42 56 308 750 1.60 2.48
HEBS14118 2422 396 42 56 308 750 1.80 2.79
HEBS14120 1921 397 42 56 308 750 2.00 3.11
HEBS14213 2380 1571 42 56 308 750 1.30 2.21
HEBS14214 2381 1572 42 56 308 750 1.40 2.37
HEBS14215 2383 229 42 56 308 750 1.50 2.52
HEBS14216 76 228 42 56 308 750 1.60 2.68
HEBS14218 77 33 42 56 308 750 1.80 2.99
HEBS14220 78 34 42 56 308 750 2.00 3.31
HEBS17115 2423 630 42 86 390 914 1.50 3.41
HEBS17116 2110 631 42 86 390 914 1.60 3.63
HEBS17118 2424 632 42 86 390 914 1.80 4.09
HEBS17120 2425 633 42 86 390 914 2.00 4.54
HEBS17125 2426 634 42 86 390 914 2.50 5.68
HEBS17213 2385 1573 42 86 390 914 1.30 3.06
HEBS17214 2386 319 42 86 390 914 1.40 3.27
HEBS17215 79 3 42 86 390 914 1.50 3.50
HEBS17216 80 4 42 86 390 914 1.60 3.72
HEBS17218 81 5 42 86 390 914 1.80 4.17
HEBS17220 82 6 42 86 390 914 2.00 4.61
HEBS17223 83 7 42 86 390 914 2.30 5.26
HEBS17225 84 8 42 86 390 914 2.50 5.69
HEBS20115 2097 635 42 116 470 1074 1.50 4.37
HEBS20116 2098 636 42 116 470 1074 1.60 4.66
HEBS20118 2099 637 42 116 470 1074 1.80 5.24
HEBS20120 2100 638 42 116 470 1074 2.00 5.82
HEBS20123 2101 639 42 116 470 1074 2.30 6.70
HEBS20125 2102 640 42 116 470 1074 2.50 7.28
HEBS20129 2103 1842 42 116 470 1074 2.90 8.45
HEBS20132 2104 1841 42 116 470 1074 3.20 9.32
HEBS20214 2387 1574 42 116 470 1074 1.40 4.22
HEBS20215 2427 1575 42 116 470 1074 1.50 4.52
HEBS20216 85 9 42 116 470 1074 1.60 4.78
HEBS20218 86 10 42 116 470 1074 1.80 5.35
HEBS20220 87 11 42 116 470 1074 2.00 5.92
HEBS20223 88 12 42 116 470 1074 2.30 6.76
HEBS20225 89 13 42 116 470 1074 2.50 7.31
HEBS20229 90 14 42 116 470 1074 2.90 8.41
HEBS20230 2183 415 42 116 470 1074 3.00 8.68
HEBS20232 91 15 42 116 470 1074 3.20 9.21
HEBS23116 2428 641 42 146 583 1300 1.60 6.45
HEBS23118 2429 642 42 146 583 1300 1.80 7.25
HEBS23120 2430 643 42 146 583 1300 2.00 8.07
HEBS23123 2431 644 42 146 583 1300 2.30 9.28
HEBS23125 2432 645 42 146 583 1300 2.50 10.09
HEBS23215 2139 316 42 146 583 1300 1.50 6.20
HEBS23216 2389 16 42 146 583 1300 1.60 6.60
HEBS23218 92 17 42 146 583 1300 1.80 7.40
HEBS23220 93 18 42 146 583 1300 2.00 8.18
HEBS23223 94 19 42 146 583 1300 2.30 9.36
HEBS23225 95 20 42 146 583 1300 2.50 10.13
HEBS23229 174 42 146 583 1300 2.90 11.74
HEBS25029 2133 2132 48.5 150 693 1520 2.90 14.49
HEBS26118 2433 646 42 176 683 1500 1.80 9.12
HEBS26120 2434 647 42 176 683 1500 2.00 10.13
HEBS26123 2435 648 42 176 683 1500 2.30 11.66
HEBS26125 2436 649 42 176 683 1500 2.50 12.66
HEBS26129 2128 650 42 176 683 1500 2.90 14.69
HEBS26216 2390 1576 42 176 683 1500 1.60 8.36
HEBS26218 2391 21 42 176 683 1500 1.80 9.32
HEBS26220 96 22 42 176 683 1500 2.00 10.31
HEBS26223 97 294 42 176 683 1500 2.30 11.80
HEBS26225 98 24 42 176 683 1500 2.50 12.78
HEBS26229 99 25 42 176 683 1500 2.90 14.71
HEBS26230 2210 42 176 683 1500 3.00 15.30
HEBS30220 2136 320 52 195 783 1700 2.00 13.35
HEBS30223 100 26 52 195 783 1700 2.30 15.27
HEBS30225 101 27 52 195 783 1700 2.50 16.55
HEBS30229 102 28 52 195 783 1700 2.90 19.07
HEBS34129 2437 52 235 933 2000 2.90 25.03
HEBS34132 2438 52 235 933 2000 3.20 27.50
HEBS34223 2394 1577 52 235 933 2000 2.30 20.26
HEBS34225 103 29 52 235 933 2000 2.50 21.82
HEBS34229 104 30 52 235 933 2000 2.90 25.17
HEBS34230 2177 2176 52 235 933 2000 3.00 26.20
hebs34230n 3451 52 235 933 2000 3.00 25.15
HEBS34232 105 31 52 235 933 2000 3.20 27.65
