Z-Pfetten

Quick Find: Clear Filters

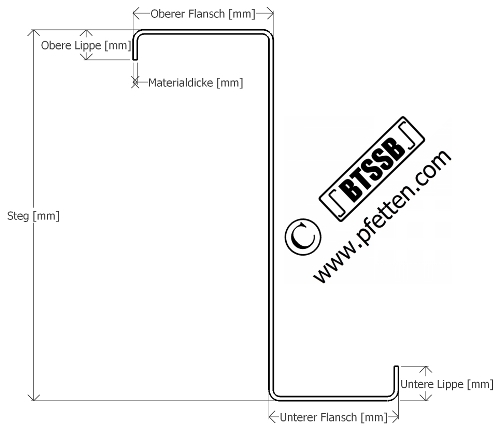

Bezeichnung Artikel-
Nr.		 Form Obere
Lippe
[mm]		 Oberer
Flansch
[mm]		 Steg
[mm]		 Unterer
Flansch
[mm]		 Untere
Lippe
[mm]		 Material-
dicke
[mm]		 Gewicht
[kg/m]		 Maß B
[mm]		 Maß C
[mm]		 Flächenwerte
Z40-30-15 416 Z 15 30 40 30 15 1.5 1.41
Z40-30-20 417 Z 15 30 40 30 15 2 1.82
Z40-30-25 418 Z 15 30 40 30 15 2.5 2.22
Z50-30-15 419 Z 15 30 50 30 15 1.5 1.53
Z50-30-20 420 Z 15 30 50 30 15 2 1.98
Z50-30-25 421 Z 15 30 50 30 15 2.5 2.41
Z6020 422 Z 15 40 60 40 15 2.0 2.61
Z60-30-20 423 Z 15 30 60 30 15 2 2.14
Z60-30-25 424 Z 15 30 60 30 15 2.5 2.61
Z60-30-30 425 Z 15 30 60 30 15 3 3.04
Z80-30-20 426 Z 15 30 80 30 15 2 2.76
Z80-30-25 427 Z 15 30 80 30 15 2.5 3.4
Z8030 428 Z 15 40 80 40 15 3.0 4.05
Z80-30-30 429 Z 15 30 80 30 15 3 3.98
Z100-50-20 430 Z 20 50 100 50 20 2 3.55
Z100-50-25 431 Z 20 50 100 50 20 2.5 4.38
Z100-50-30 432 Z 20 50 100 50 20 3 5.16
Z-120x15 796 Z 15 50 120 45 15 1.5 2.84 29 60
Z120-60-20 433 Z 20 60 120 60 20 2 4.18
Z-120x20 797 Z 15 50 120 45 15 2 3.78 29 60
Z120-60-25 434 Z 20 60 120 60 20 2.5 5.16
Z12030 435 Z 20 50 120 50 20 3.0 5.7
Z120-60-30 436 Z 20 60 120 60 20 3 6.1
121Z15 622 Z 17 54 121 49 19 1.5 2.89 32 56
121Z16 398 Z 17 54 121 49 19 1.6 3.08 32 56
121Z18 623 Z 17 54 121 49 19 1.8 3.47 32 56
121Z20 624 Z 17 54 121 49 19 2.0 3.85 32 56
122Z16 265 Z 19 54 122 49 21 1.6 3.21 32 56
140Z15 354 Z 22 65.5 140 59.5 22 1.5 3.50 34 70
Z140*150 681 Z 22 69 140 59 30.5 1.5 3.65 42 54
Z140-15 882 Z 22 66 140 59 22 1.5 3.60 34 70
Z-140x15 798 Z 15 50 140 45 15 1.5 3.07 34 70
140Z20 355 Z 22 65.5 140 59.5 22 2.0 4.55 34 70
140Z20RL142Z20 1708 Z 22 65.5 140 59.5 22 2.0 4.55 41 56
Z140x20L127 1868 Z 20 68 140 60 20 2.0 4.86 41 56
Z14020 437 Z 20 60 140 60 20 2.0 4.48
Z140-20 883 Z 23.5 66 140 59 23.5 2.0 4.80 34 70
Z140-60-20 438 Z 20 60 140 60 20 2 4.49
Z-140x20 799 Z 15 50 140 45 15 2.0 4.10 34 70
140Z25 356 Z 22 65.5 140 59.5 22 2.5 5.61 34 70
Z140-25 884 Z 25 66 140 59 25 2.5 6.00 34 70
Z140-60-25 439 Z 20 60 140 60 20 2.5 5.55
Z140-30 885 Z 26.5 66 140 59 26.5 3 7.20 34 70
Z140-60-30 440 Z 20 60 140 60 20 3 6.57
Z140-75-20-32 Z 20 75 140 75 20 3.2
141Z15 625 Z 17 54 141 49 19 1.5 3.10 42 56
141Z16 395 Z 17 54 141 49 19 1.6 3.31 42 56
141Z18 396 Z 17 54 141 49 19 1.8 3.72 42 56
141Z20 397 Z 17 54 141 49 19 2.0 4.14 42 56
142Z13 1571 Z 19 60 142 55 21 1.3 2.94 42 56
142Z14 1572 Z 19 60 142 55 21 1.4 3.16 42 56
142Z15 229 Z 19 60 142 55 21 1.5 3.36 42 56
142Z16 228 Z 19 60 142 55 21 1.6 3.57 42 56 Flächenwerte
142Z18 33 Z 19 60 142 55 21 1.8 3.99 42 56 Flächenwerte
142Z20 34 Z 19 60 142 55 21 2 4.41 42 56 Flächenwerte
142Z30 2330 Z 19 60 142 55 21 3 6.53 42 56
Z15020 441 Z 20 50 150 50 20 2.0 4.335
Z150-50-20 442 Z 20 50 150 50 20 2 4.33
Z150-70-20 443 Z 20 70 150 70 20 2 4.96
Z150-50-25 444 Z 20 50 150 50 20 2.5 5.36
Z150-70-25 445 Z 20 70 150 70 20 2.5 6.14
Z150-50-30 446 Z 20 50 150 50 20 3 6.33
Z150-70-30 447 Z 20 70 150 70 20 3 7.28
151Z15 626 Z 17 54 151 49 19 1.5 3.26 42 66
151Z16 627 Z 17 54 151 49 19 1.6 3.47 42 66
151Z18 628 Z 17 54 151 49 19 1.8 3.91 42 66
151Z20 629 Z 17 54 151 49 19 2.0 4.34 42 66
160Z15 357 Z 22 65.5 160 59.5 22 1.5 3.70 44 70
Z160-15 886 Z 24.5 71 160 64 24.5 1.5 4.02 34 90
160Z20 358 Z 22 65.5 160 59.5 22 2.0 4.90 44 70
Z160-20 887 Z 26 71 160 64 26 2.0 5.36 34 90
Z160-50-20 448 Z 20 50 160 50 20 2 4.49
Z160-70-20 449 Z 20 70 160 70 20 2 5.12
160Z25 359 Z 22 65.5 160 59.5 22 2.5 6.00 44 70
Z16025 450 Z 21 69 160 69 21 2.5 6.38
Z160-25 888 Z 27.5 71 160 64 27.5 2.5 6.70 34 90
Z160-50-25 451 Z 20 50 160 50 20 2.5 5.55
Z160-70-25 452 Z 20 70 160 70 20 2.5 6.34
Z160-30 889 Z 29 71 160 64 29 3 8.04 34 90
Z160-50-30 453 Z 20 50 160 50 20 3 6.57
Z160-70-30 454 Z 20 70 160 70 20 3 7.51
Z170*150 682 Z 22 69 170 59 30.5 1.5 4 44 80
171Z15 630 Z 17 65 171 60 19 1.5 3.73 42 86
171Z16 631 Z 17 65 171 60 19 1.6 3.97 42 86
171Z18 632 Z 17 65 171 60 19 1.8 4.47 42 86
171Z20 633 Z 17 65 171 60 19 2.0 4.97 42 86
171Z25 634 Z 17 65 171 60 19 2.5 6.21 42 86
172Z13 1573 Z 19 65 172 60 21 1.3 3.35 42 86
172Z14 319 Z 19 65 172 60 21 1.4 3.58 42 86
172Z15 3 Z 19 65 172 60 21 1.5 3.83 42 86 Flächenwerte
Z17215 455 Z 19 66 172 59 21 1.5 3.83
172Z16 4 Z 19 65 172 60 21 1.6 4.07 42 86 Flächenwerte
172Z18 5 Z 19 65 172 60 21 1.8 4.56 42 86 Flächenwerte
172Z20 6 Z 19 65 172 60 21 2.0 5.04 42 86 Flächenwerte
172Z23 7 Z 19 65 172 60 21 2.3 5.75 42 86 Flächenwerte
172Z25 8 Z 19 65 172 60 21 2.5 6.22 42 86 Flächenwerte
Z17225 456 Z 19 66 172 59 21 2.5 6.28
180Z15 346 Z 22 65.5 180 59.5 22 1.5 4.00 48 81
Z180*150 683 Z 22.5 65 180 59.5 22.5 1.5 3.92 49 80
Z180*1,5 771 Z 21 65 180 59 21 1.5 3.85 48 81.5
Z180-15 890 Z 22 71 180 64 22 1.5 4.20 44 90
Z-180x15 800 Z 20 65 180 60 20 1.5 4.02 44 90
Z180*1,75 772 Z 21 65 180 59 21 1.75 4,47 48 81.5
180Z20 347 Z 22 65.5 180 59.5 22 2.0 5.20 48 81
Z180*200 684 Z 23 65 180 59.5 22.5 2.0 5.22 49 80
Z180-20 891 Z 23.5 71 180 64 23.5 2.0 5.60 44 90
Z180-50-20 457 Z 20 50 180 50 20 2 4.8
Z180-70-20 458 Z 20 70 180 70 20 2 5.43
Z-180x20 801 Z 20 65 180 60 20 2.0 5.35 44 90
180Z25 348 Z 22 65.5 180 59.5 22 2.5 6.40 48 81
Z180-25 892 Z 25 71 180 64 25 2.5 7.00 44 90
Z180-50-25 459 Z 20 50 180 50 20 2.5 5.95
Z180-70-25 460 Z 20 70 180 70 20 2.5 6.73
Z180-30 893 Z 26.5 71 180 64 26.5 3 8.40 44 90
Z180-50-30 461 Z 20 50 180 50 20 3 7.04
Z180-70-30 462 Z 20 70 180 70 20 3 7.89
Z18035 463 Z 25 80 180 80 25 3.5 9.95
Z180*2,0 773 Z 21 65 181 59 21 2.0 5.10 48.5 81.5
Z180*2,5 774 Z 21 66 182 60 21 2.5 6.38 48.5 81.5
200Z15 349 Z 22 65.5 200 59.5 22 1.5 4.20 49 100
Z200*150a 685 Z 23 65 200 59.5 22.5 1.5 4.15 45 108
Z200*150b 686 Z 22 69 200 59 30.5 1.5 4.35 45 108
Z200-15 894 Z 19.5 76 200 69 19.5 1.5 4.50 44 110
200Z20 350 Z 22 65.5 200 59.5 22 2.0 5.50 49 100
Z200*200 687 Z 23 65 200 59.5 22.5 2.0 5.54 45 108
Z200-20 895 Z 21 76 200 69 21 2.0 6.00 44 110
200Z25 351 Z 22 65.5 200 59.5 22 2.5 6.80 49 100
Z20025 464 Z 20 70 200 70 20 2.5 7.13
Z200-25 896 Z 22.5 76 200 69 22.5 2.5 7.50 44 110
Z20030 413 Z 20 60 200 60 20 3.0 8.06
Z200-30 897 Z 24 76 200/ 69 24 3.0 9.00 44 110
Z200-50-30 414 Z 20 50 200 50 20 3 7.51
Z200-50-40 465 Z 20 50 200 50 20 4 9.8
Z200-50-60 466 Z 20 50 200 50 20 6 14.03
201Z15 635 Z 17 65 201 60 19 1.5 4.07 42 116
201Z16 636 Z 17 65 201 60 19 1.6 4.34 42 116
201Z18 637 Z 17 65 201 60 19 1.8 4.88 42 116
201Z20 638 Z 17 65 201 60 19 2.0 5.42 42 116
201Z23 639 Z 17 65 201 60 19 2.3 6.24 42 116
201Z25 640 Z 17 65 201 60 19 2.5 6.78 42 116
201Z29 1842 Z 17 65 201 60 19 2.9 7.86 42 116
201Z32 1841 Z 17 65 201 60 19 3.2 8.68 42 116
202Z14 1574 Z 19 65 202 60 21 1.4 3.93 42 116
202Z15 1575 Z 19 65 202 60 21 1.5 4.21 42 116
Z20215 775 Z 19 66 202 59 21 1.5 4.18
Z200*1,5 467 Z 21 70 202 59 21 1.5 4.16 50 100
202Z16 9 Z 19 65 202 60 21 1.6 4.45 42 116 Flächenwerte
Z200*1,75 776 Z 21 70 202 59 21 1.75 4.84 50 100
202Z18 10 Z 19 65 202 60 21 1.8 4.98 42 116 Flächenwerte
202Z20 11 Z 19 65 202 60 21 2.0 5.51 42 116 Flächenwerte
Z20220 777 Z 19 66 202 59 21 2.0 5.545
Z200*2,0 468 Z 21 71 202 60 21 2.0 5.54 50 100
202Z23 12 Z 19 65 202 60 21 2.3 6.29 42 116 Flächenwerte
202Z25 13 Z 19 65 202 60 21 2.5 6.81 42 116 Flächenwerte
Z20225 469 Z 19 66 202 59 21 2.5 6.87
202Z29 14 Z 19 65 202 60 21 2.9 7.83 42 116 Flächenwerte
202Z30 415 Z 19 65 202 60 21 3.0 8.08 42 116
202Z32 15 Z 19 65 202 60 21 3.2 8.58 42 116 Flächenwerte
Z200*2,5 778 Z 21 72 203 61 21 2.5 6.93 50 100
Z200*3,0 779 Z 21 72 203 62 21 3.0 8.27 50 100
Z-210x15 802 Z 20 65 210 60 20 1.5 4.37 59 90
Z-210x20 803 Z 20 65 210 60 20 2.0 5.82 59 90
Z-210x25 804 Z 20 65 210 60 20 2.5 7.28 59 90
Z220*150 688 Z 22 69 220 59 30.5 1.5 4.59 45 128
Z220-15 898 Z 22 76 220 69 22 2.0 4.80 44 130
220Z20 352 Z 22 65.5 220 59.5 22 2.0 5.85 49 120
Z220-20 899 Z 23.5 76 220 69 23.5 2.0 6.40 44 130
220Z25 353 Z 22 65.5 220 59.5 22 2.5 7.20 49 120
Z220-25 900 Z 25 76 220 69 25 2.5 8.00 44 130
Z220-30 901 Z 26.5 76 220 69 26.5 3.0 9.60 44 130
231Z16 641 Z 17 76 231 69 19 1.6 4.96 42 146
231Z18 642 Z 17 76 231 69 19 1.8 5.58 42 146
231Z20 643 Z 17 76 231 69 19 2.0 6.21 42 146
231Z23 644 Z 17 76 231 69 19 2.3 7.14 42 146
231Z25 645 Z 17 76 231 69 19 2.5 7.76 42 146
232Z15 316 Z 19 76 232 69 21 1.5 4.77 42 146
Z23215 470 Z 19 80 232 72 21 1.5 4.875
232Z16 16 Z 19 76 232 69 21 1.6 5.08 42 146 Flächenwerte
232Z18 17 Z 19 76 232 69 21 1.8 5.69 42 146 Flächenwerte
232Z20 18 Z 19 76 232 69 21 2.0 6.30 42 146 Flächenwerte
Z23220 471 Z 19 80 232 72 21 2.0 6.44
232Z23 19 Z 19 76 232 69 21 2.3 7.20 42 146 Flächenwerte
232Z25 20 Z 19 76 232 69 21 2.5 7.79 42 146 Flächenwerte
Z23225 472 Z 19 80 232 72 21 2.5 7.99
232Z30 2181 Z 19 76 232 69 21 3.0 9.35 42 146
Z240-15 902 Z 24.5 81 240 74 24.5 1.5 5.22 54 130
Z240*180 689 Z 22 69 240 59 30.5 1.8 5.79 45 148
240Z20d 1598 Z 16 76 240 68 20 2.0 6.26 40 157
Z240-20 903 Z 26 81 240 74 26 2.0 6.96 54 130
Z-240x20 829 Z 20 75 240 70 20 2.0 6.61 44 150
Z240-75-32x2.0 2324 Z 32 75 240 75 32 2.0 6.89
240Z25d 1599 Z 16 76 240 68 20 2.5 7.83 40 157
Z240-25 904 Z 27.5 81 240 74 27.5 2.5 8.70 54 130
Z-240x25 830 Z 20 75 240 70 20 2.5 8.26 44 150
Z24030 473 Z 15 75 240 70 15 3.0 9.35
Z240-30 905 Z 29 81 240 74 29 3.0 10.44 54 130
Z-240x30 831 Z 20 75 240 70 20 3.0 9.91 44 150
240Z32d 1600 Z 16 76 240 68 20 3.2 10.02 40 157
Z250*1,75 780 Z 22 77 250 67 22 1.75 5.73 48.5 150
250Z20 383 Z 22 78 250 67 21.5 2.0 6.56 49 150
Z250*2,0 781 Z 22 77 250 67 22 2.0 6.53 48.5 150
250Z25 384 Z 22 79 250 68 21.5 2.5 8.40 48.5 150
250Z30 385 Z 22 80 250 69 21.5 3.0 9.84 48 150
Z25025 2131 Z 17 80 250 72 19 2.5 8.26 48.5 150
Z25029 2132 Z 17 80 250 72 19 2.9 9.53 48.5 150
Z250-75-25x3,5 2135 Z 25 75 250 75 25 3.5 11.73
Z250*2,5 782 Z 22 78 251 68 22 2.5 8.16 49 150
Z250*3,0 783 Z 22 78 252 69 22 3.0 9.77 49.5 150
Z250*4,0 784 Z 22 79 253 70 22 4.0 12.90 49.5 150
Z260*180 690 Z 22 69 260 59 30.5 1.8 6.08 45 168
Z260*200 691 Z 22 69 260 59 30.5 2.0 6.75 45 168
Z260-20 906 Z 23.5 81 260 74 23.5 2.0 7.20 54 150
Z260*240 692 Z 22 69 260 59 30.5 2.4 8.1 45 168
Z260-25 907 Z 25 81 260 74 25 2.5 9.00 54 150
Z260*270 693 Z 22 69 260 59 30.5 2.7 9.11 45 168
Z260-30 908 Z 26.5 81 260 74 26.5 3.0 10.80 54 150
Z260*320 694 Z 22 69 260 59 30.5 3.2 10.8 45 168
Z260-40 909 Z 29.5 81 260 74 29.5 4.0 14.40 54 150
261Z18 646 Z 17 80 261 72 19 1.8 6.08 42 176
261Z20 647 Z 17 80 261 72 19 2.0 6.75 42 176
261Z23 648 Z 17 80 261 72 19 2.3 7.77 42 176
261Z25 649 Z 17 80 261 72 19 2.5 8.44 42 176
261Z29 650 Z 17 80 261 72 19 2.9 9.79 42 176
262Z16 1576 Z 19 80 262 72 21 1.6 5.57 42 176
262Z18 21 Z 19 80 262 72 21 1.8 6.21 42 176 Flächenwerte
262Z20 22 Z 19 80 262 72 21 2.0 6.88 42 176 Flächenwerte
Z26220 474 Z 19 80 262 72 21 2.0 6.91
262Z23 294 Z 19 80 262 72 21 2.3 7.86 42 176 Flächenwerte
262Z25 24 Z 19 80 262 72 21 2.5 8.52 42 176 Flächenwerte
Z26225 475 Z 19 80 262 72 21 2.5 8.58
262Z29 25 Z 19 80 262 72 21 2.9 9.81 42 176 Flächenwerte
262Z30 2160 Z 19 80 262 72 21 3.0 10.15 42 176
Z26230 476 Z 19 80 262 72 21 3.0 10.2
Z-270x20 832 Z 20 75 270 70 20 2.0 7.08 49 170
Z-270x25 833 Z 20 75 270 70 20 2.5 8.85 49 170
Z-270x30 834 Z 20 75 270 70 20 3.0 10.62 49 170
Z280-20 910 Z 28.5 91 280 84 28.5 2.0 8.04 54 170
Z280-25 911 Z 30 91 280 84 30 2.5 10.11 54 170
Z280-30 912 Z 31.5 91 280 84 31.5 3.0 12.20 54 170
Z280-40 913 Z 34.5 91 280 84 34.5 4.0 16.45 54 170
Z300*180 695 Z 22 69 300 59 30.5 1.8 6.64 60 178
300Z20 386 Z 30 93 300 85 29.5 2.0 8.15 54 190
Z300*200 785 Z 22 69 300 59 30.5 2.0 8.13 60 178
Z300*2,0 696 Z 30 94 300 86 30 2.0 7.38 54 190
Z300-20 914 Z 18.5 91 300 84 18.5 2.0 8.04 54 190
Z-300x20 835 Z 20 75 300 70 20 2.0 7.55 59 180
Z300*240 697 Z 22 69 300 59 30.5 2.4 8.85 60 178
300Z25 387 Z 30 94 300 86 30 2.5 10.15 53.5 190
300Z25d 1601 Z 27 94 300 86 31 2.5 10.11 50 197
Z300*2,5 786 Z 30 94 300 86 30 2.5 10.10 53.5 190
Z300-25 915 Z 20 91 300 84 20 2.5 10.11 54 190
Z-300x25 836 Z 20 75 300 70 20 2.5 9.44 59 180
Z300*270 698 Z 22 69 300 59 30.5 2.7 9.96 60 178
300Z30 388 Z 31 95 300 87 30.5 3.0 12.20 53 190
Z300-30 916 Z 21.5 91 300 84 21.5 3.0 12.20 54 190
Z-300x30 837 Z 20 75 300 70 20 3.0 11.33 59 180
300Z32d 1602 Z 27 94 300 86 31 3.2 12.13 50 197
Z300*320 699 Z 22 69 300 59 30.5 3.2 11.81 60 178
Z300-40 917 Z 24.5 91 300 84 24.5 4.0 16.45 54 190
Z300*3,0 787 Z 30 95 301 87 30 3.0 12.10 54 190
302Z20 320 Z 20 90 302 82 22 2.0 7.85 52 195
302Z23 26 Z 20 90 302 82 22 2.3 8.98 52 195 Flächenwerte
302Z25 27 Z 20 90 302 82 22 2.5 9.73 52 195 Flächenwerte
Z30225 477 Z 20 90 302 82 22 2.5 9.76
302Z29 28 Z 20 90 302 82 22 2.9 11.22 52 195 Flächenwerte
Z30230 478 Z 20 90 302 82 22 3.0 11.59
Z300*4,0 788 Z 30 96 302 87 30 4.0 16.10 54 190
341Z29 2048 Z 17 102 341 94 19 2.9 12.52 52 235
341Z32 2049 Z 17 102 341 94 19 3.2 13.75 52 235
342Z23 1577 Z 20 100 342 92 22 2.3 10.13 52 235
342Z25 29 Z 20 100 342 92 22 2.5 10.91 52 235 Flächenwerte
342Z29 30 Z 20 100 342 92 22 2.9 12.58 52 235 Flächenwerte
342Z30 2176 Z 20 100 342 92 22 3.0 13.10 52 235
Z34230 479 Z 20 100 342 92 22 3.0 13
342Z32 31 Z 20 100 342 92 22 3.2 13.83 52 235 Flächenwerte
Z34235 480 Z 20 100 342 92 22 3.5 15.14
Z350-75-25x2.0 2323 Z 25 75 350 75 25 2.0 8.40
Z350-75-25x3.0 2322 Z 25 75 350 75 25 3.0 12.04
Z350-75-20x3.5 2166 Z 20 75 350 75 20 3.5 14.20
Z350-75-25x3.5 2130 Z 25 75 350 75 25 3.5 14.48
Z350*2,0 789 Z 30 94 350 86 30 2.0 8.92 54 240
Z350*2,5 790 Z 30 94 350 86 30 2.5 11.09 53.5 240
Z350*3,0 791 Z 30 95 351 87 30 3.0 13.31 54 240
Z350*4,0 792 Z 30 96 352 87 30 4.0 17.64 54 240
Z400*2,0 793 Z 30 94 400 86 30 2.0 9.70 54 290
Z400*2,5 794 Z 30 94 400 86 30 2.5 12.07 53.5 290
Z400*3,0 795 Z 30 95 401 87 30 3.0 14.48 54 290
